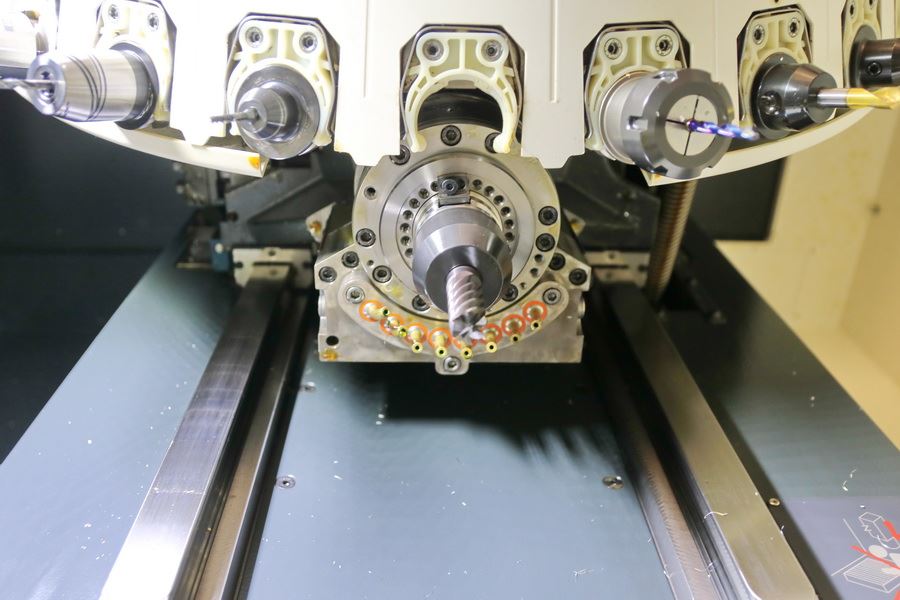

DMG MORI 19-in. SLIMline multi-touch control with Operate 4.8 on SIEMENS and 3D control technologies.New DMG MORI Stealth design with inside work area doors and long-life surfaces.Flexible automation connection from the right, left or front of the machine.Extremely dynamic tool change with a chip-to-chip time of 1.5 seconds (15-tool magazine).Rapid traverses of 60 m/min (196 ft./min.) in all axes and up to 2 g acceleration.High precision due to direct absolute measuring systems as standard.Enhanced thermal stability thanks to thermo-symmetrical machine design and optimum cooling concept.ft.) footprint is suitable for the production and medical technology sectors. The optimally accessible tool magazine has space for up to 15 tools with lengths up to 250 mm, 25 tool pockets possible as an option.The new DMP 70 from DMG MORI offers a small footprint with an extensive work area. Its fast tool change and chip-to-chip times of 1.5 seconds also play their part in ensuring the high level of productivity. In its standard version the DMP 70 is equipped with an inline spindle with a speed of 10,000 rpm and 78 Nm torque. With rapid traverses of 60 m/min and an acceleration of up to 2 g the DMP 70 offers maximum dynamics. Top dynamics for productive manufacturing Thanks to the reduced tolerance of numerous machine components the DMP 70 operates with an overall accuracy that is 60 percent higher than that of the MILLTAP 700. Direct absolute travel measuring systems provide a high level of positioning accuracy ensuring the production machine meets the high precision demands of the target sectors. Maximum precision due to reduced tolerancesĭMG MORI has improved thermal stability with an optimized cooling concept an thus also the long-term accuracy of the DMP 70. Scratchproof long-life surfaces protect against damage and boost the value retention of the machine. These prevent chips from escaping to the outside. The DMP 70 also ensures a high level of user-friendliness in production through its ergonomic Stealth design with steep covers in the clearly visible work area and (optionally automatable) inside doors. With a footprint of just 4.2 m² the DMP 70 nevertheless has travel paths of 700 x 420 x 380 mm User-friendly Stealth design for enhanced ergonomics Additional stability has been achieved through the high-strength spindle – thanks to higher spring preload – and the sturdy tool magazine with metal clips. A wide grey cast iron machine bed, enlarged installation footprint and 35 mm linear guideways constitute the basis for the quality-oriented and up to 30 percent faster machining of demanding workpieces. Connection from the front is also possible.Īn end-to-end optimization of the machine concept has made the DMP 70 an extremely rigid production machine with a metal removal rate that is ten percent higher than the MILLTAP 700. Automation solutions such as the workpiece handling WH 3 Cell, which the DMP 70 will be presented with at the Open House in Pfronten, can be connected flexibly from the right or left. Travel paths of 700 x 420 x 380 mm and the optional integrated swivel/rotary table enable 5-axis simultaneous machining of a wide range of components making the DMP 70 the ideal complement for taking the burden off existing machines on the shopfloor. DMG MORI has designed the compact production machine for applications in medical technology, job shop as well as the aerospace sector and other demanding industries.
With a footprint of just 4.2 m² it is around 10 percent smaller than the MILLTAP 700.
Maximum thermal stability thanks to its thermo-symmetrical machine design and optimum cooling concept.Smallest of footprints measuring just 4.2 m² – ideal for the production and medical technology sectors.
